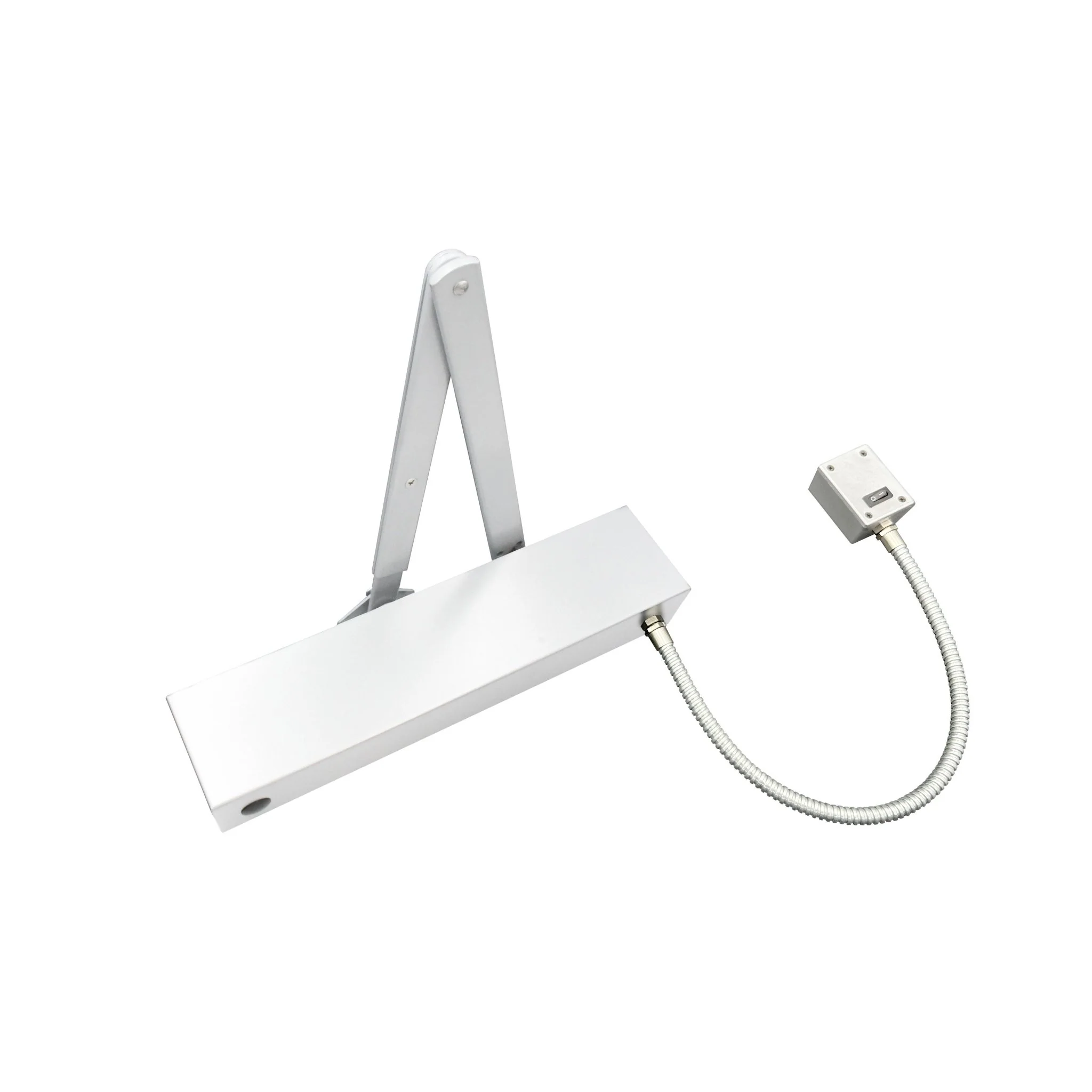

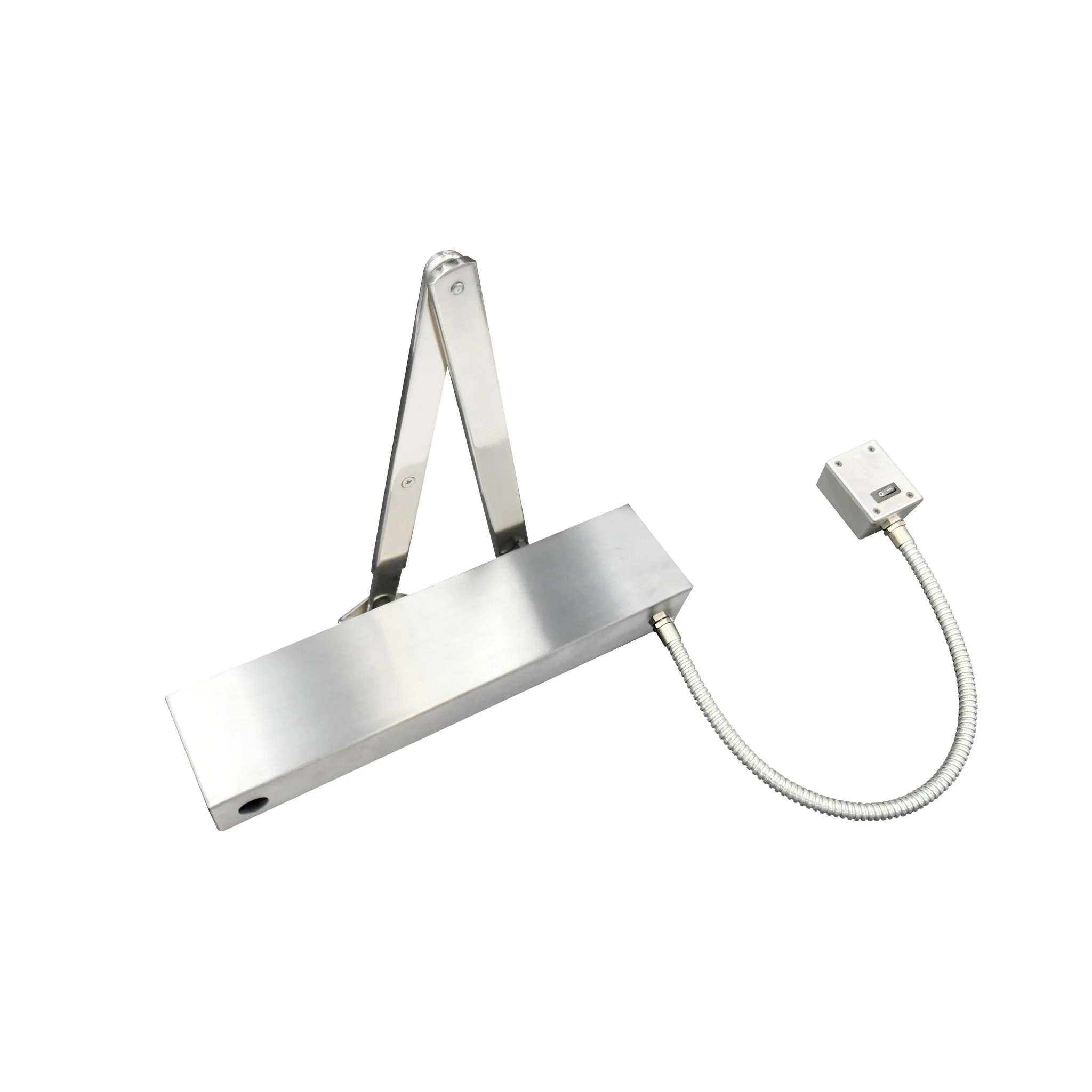

E-Mag Door Closers - Size 3 to Size 6
E-Mag Door Closers
The E-Mag Door Closers are advanced electromagnetic door control solutions designed for commercial, public, and fire-rated environments where controlled closing, safety compliance, and reliable performance are essential. Combining durable aluminium construction with modern square and radiused body designs, these door closers provide dependable operation for a wide range of timber fire door applications.
Available in multiple fixed power sizes from Size 3 to Size 6, the E-Mag range features electro hold-open or swing-free functionality, adjustable closing and latching speeds, and compatibility with fire safety systems. Designed for both door mount pull and push applications, these closers are successfully tested to relevant fire and compliance standards, making them suitable for demanding commercial environments.
Key Features
- Available in fixed power sizes 3, 4, 5, and 6
- Choice of square or radiused body designs
- Durable aluminium body with steel scissor arm
- Electro hold-open or swing-free functionality
- Adjustable closing and latching speed controls
- 24Vdc operation
- Suitable for timber fire doors up to 120 minutes
- Successfully tested to BS EN 1155:1997 standards
- Successfully fire tested to BS EN1634-1 standards
- CE Marked, UKCA Marked, and CERTIFIRE approved models available
- 2-year manufacturer guarantee
- Silver supplied as standard with optional black finish
- Additional finishes available on request
Available Variants
- Size 3 Square – suitable for doors up to 60kg and 950mm width
- Size 3 Radius – suitable for doors up to 60kg and 950mm width
- Size 4 Square – suitable for doors up to 80kg and 1100mm width
- Size 4 Radius – suitable for doors up to 80kg and 1100mm width
- Size 5 Square – suitable for doors up to 100kg and 1250mm width
- Size 6 Square – suitable for doors up to 120kg and 1400mm width
Available Finishes
- Satin Stainless
- Silver
- Black (Optional)
Specifications
- Product Type: Electromagnetic Door Closer
- Body Material: Aluminium
- Arm Type: Steel Scissor Arm
- Operation: Electro Hold Open / Swing Free
- Voltage: 24Vdc
- Mounting: Door Mount Pull / Door Mount Push
- Fire Test Standard: BS EN1634-1
- Compliance Standard: BS EN 1155:1997
- Guarantee: 2 Years
- Maximum Fire Door Rating: 120 Minutes
Certifications
- CE Marked
- UKCA Marked
- CERTIFIRE Approved
- Certificate References: AE7863, AE7864, AE7860, CF6104
Suitable Applications
- Commercial buildings
- Hospitals and healthcare facilities
- Educational buildings
- Hotels and hospitality environments
- Public access buildings
- Timber fire-rated doors
- Offices and retail spaces
Meta Description
Professional E-Mag Door Closers available in Size 3–6 square and radiused designs. Featuring electro hold-open or swing-free operation, FD30–120 fire testing, and CE, UKCA, and CERTIFIRE approvals.
Original: $263.00
-65%$263.00
$92.05Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
E-Mag Door Closers
The E-Mag Door Closers are advanced electromagnetic door control solutions designed for commercial, public, and fire-rated environments where controlled closing, safety compliance, and reliable performance are essential. Combining durable aluminium construction with modern square and radiused body designs, these door closers provide dependable operation for a wide range of timber fire door applications.
Available in multiple fixed power sizes from Size 3 to Size 6, the E-Mag range features electro hold-open or swing-free functionality, adjustable closing and latching speeds, and compatibility with fire safety systems. Designed for both door mount pull and push applications, these closers are successfully tested to relevant fire and compliance standards, making them suitable for demanding commercial environments.
Key Features
- Available in fixed power sizes 3, 4, 5, and 6
- Choice of square or radiused body designs
- Durable aluminium body with steel scissor arm
- Electro hold-open or swing-free functionality
- Adjustable closing and latching speed controls
- 24Vdc operation
- Suitable for timber fire doors up to 120 minutes
- Successfully tested to BS EN 1155:1997 standards
- Successfully fire tested to BS EN1634-1 standards
- CE Marked, UKCA Marked, and CERTIFIRE approved models available
- 2-year manufacturer guarantee
- Silver supplied as standard with optional black finish
- Additional finishes available on request
Available Variants
- Size 3 Square – suitable for doors up to 60kg and 950mm width
- Size 3 Radius – suitable for doors up to 60kg and 950mm width
- Size 4 Square – suitable for doors up to 80kg and 1100mm width
- Size 4 Radius – suitable for doors up to 80kg and 1100mm width
- Size 5 Square – suitable for doors up to 100kg and 1250mm width
- Size 6 Square – suitable for doors up to 120kg and 1400mm width
Available Finishes
- Satin Stainless
- Silver
- Black (Optional)
Specifications
- Product Type: Electromagnetic Door Closer
- Body Material: Aluminium
- Arm Type: Steel Scissor Arm
- Operation: Electro Hold Open / Swing Free
- Voltage: 24Vdc
- Mounting: Door Mount Pull / Door Mount Push
- Fire Test Standard: BS EN1634-1
- Compliance Standard: BS EN 1155:1997
- Guarantee: 2 Years
- Maximum Fire Door Rating: 120 Minutes
Certifications
- CE Marked
- UKCA Marked
- CERTIFIRE Approved
- Certificate References: AE7863, AE7864, AE7860, CF6104
Suitable Applications
- Commercial buildings
- Hospitals and healthcare facilities
- Educational buildings
- Hotels and hospitality environments
- Public access buildings
- Timber fire-rated doors
- Offices and retail spaces
Meta Description
Professional E-Mag Door Closers available in Size 3–6 square and radiused designs. Featuring electro hold-open or swing-free operation, FD30–120 fire testing, and CE, UKCA, and CERTIFIRE approvals.
